Rack and pinion
A rack and pinion is a type of linear actuator that comprises a circular gear (the pinion) engaging a linear gear (the rack), which operate to translate rotational motion into linear motion. Driving the pinion into rotation causes the rack to be driven linearly. Driving the rack linearly will cause the pinion to be driven into a rotation. A rack and pinion drive can use both straight and helical gears. Helical gears are preferred due to their quieter operation and higher load bearing capacity. The maximum force that can be transmitted in a rack and pinion mechanism is determined by the tooth pitch and the size of the pinion.
Worms and worm gears
Worms and worm gears are gear sets that offer high gear reduction and torque multiplication with a small footprint. A worm drive is a cylindrical gear with a shallow spiral thread that engages the worm gear in a non-intersecting, perpendicular axes configuration.
Efficiency of a worm drive is determined by the lead angle and the number of threads in contact with the worm gear. A high lead angle on the drive reduces frictional losses and heat. A low lead angle reduces gear speed while proportionally increasing torque.
Variance amongst worm gear sets is generally constricted to handedness (left or right) and the concavity available to worm drives and worm gears along gear widths. Their use depends on the mechanical efficiency required.
Pulley
A pulley is a wheel on an axle or shaft that is designed to support movement and change of direction of a taut cable or belt, or transfer of power between the shaft and cable or belt. A pulley may have a groove or grooves between flanges around its circumference to locate the cable or belt. The drive element of a pulley system can be a rope, cable, belt, or chain.
- Taper lock pulleys
- V belts pulley
- Timing belt pulleys
- Step pulleys
- Split pulleys
Shaft
A shaft is a rotating machine element, usually circular in cross section, which is used to transmit power from one part to another. Transmission shafts are used to transmit power between the source and the machine absorbing power.
- Spindle shaft.
- Eccentric shaft
- Spline shaft
- Axle shaft

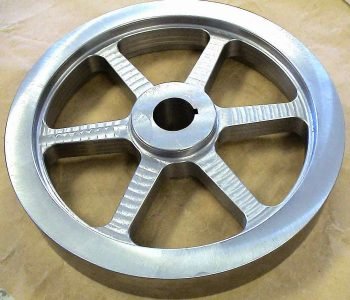

Flywheel
A flywheel is a mechanical device specifically designed to use the conservation of angular momentum so as to efficiently store rotational energy; a form of kinetic energy proportional to the product of its moment of inertia and the square of its rotational speed

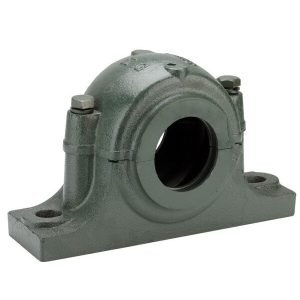

Plummer block
A pillow block bearing or plummer block is a pedestal used to provide support for a rotating shaft with the help of compatible bearings & various accessories. The assembly consists of a mounting block which houses a bearing. The block is mounted to a foundation and a shaft is inserted allowing the inner part of the bearing / shaft to rotate.
